Photo Gallery

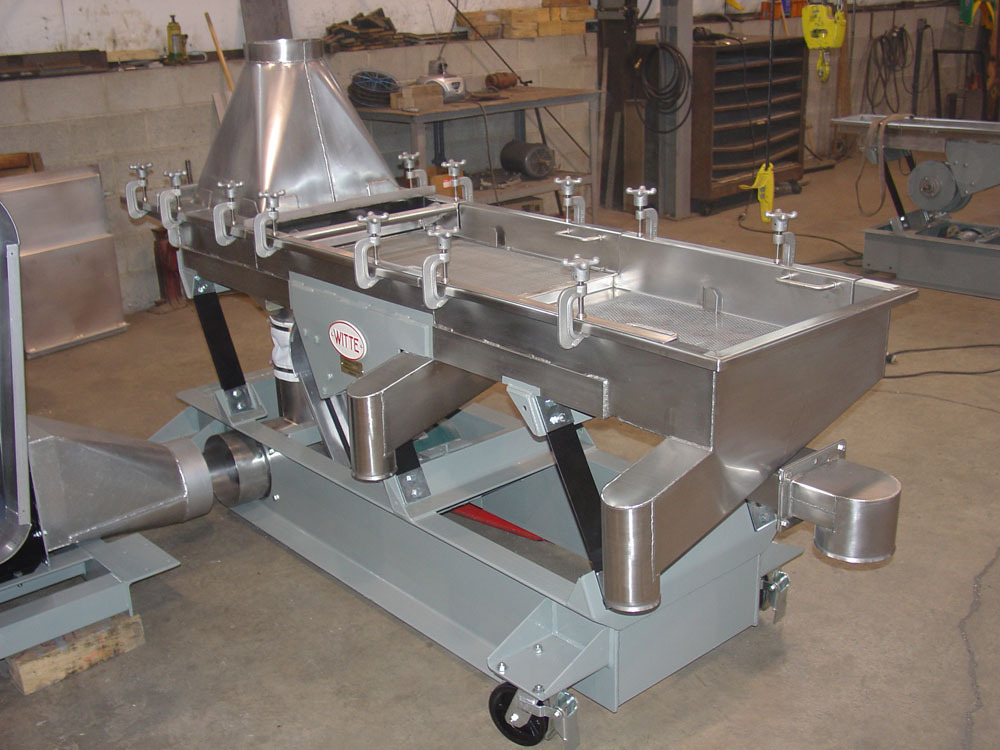

Pictured is a 10 IN. wide 200 series plastic pellet classifier mounted on casters for mobile placement.

Shown is a 22 IN. wide 200 series plastic pellet classifier with extended legs to raise overall elevation.

This is a 48 IN. wide 200 series plastic pellet classifier with perforated decks for both fines and overs separation.

Designed for over 20,000 #/hr of capacity, our 72 IN. wide 200 series plastic pellet classifier.

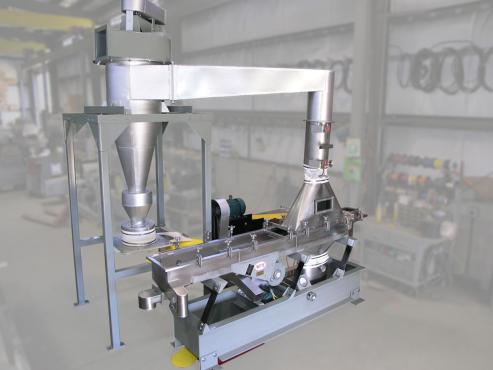

A 12 IN. wide 400 series unit is shown with our integrated cyclone and fan for efficient cleaning of exhaust air.

This is a small example of a 400 series air classifier for efficient removal of ultra fines, fines and oversize particles.

Shown is a 48 IN. wide 400 series shown with full screen covers.

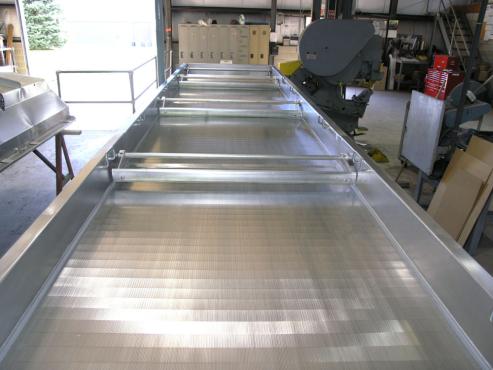

The Interior view of a Fluid bed Dryer, showing the continuous construction of the conveying surface. Also shown are the product retention control weirs, which are automatically timed.

A Dual cyclone exhaust system completely assembled before shipment.

Fluid Bed Dryers Feature Independent Temperature Control Zones.

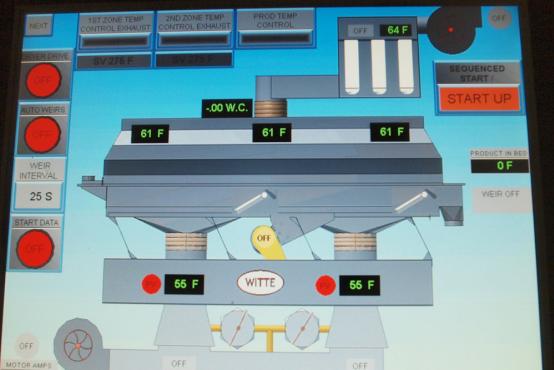

Remote monitoring, control now offered on line of fluid bed dryers, coolers, pellet classifiers.

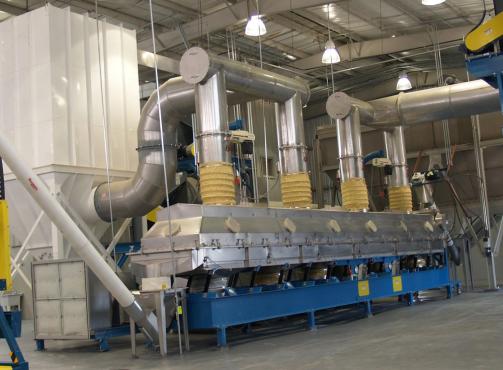

This fluid bed dryer system spans 4′ x 36′ for drying shrimp and crab shells. Witte manufactured this drying system complete with all air handling equipment, controls, feed and discharge conveyors.

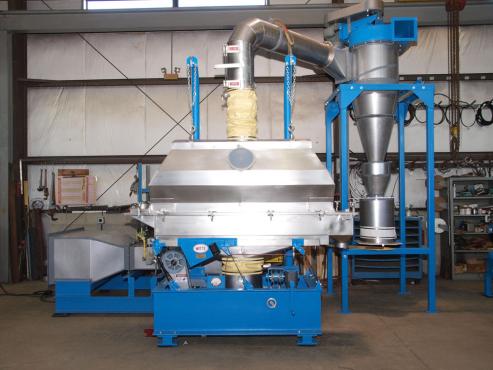

This compact fluid bed dryer for drying specialty tobacco products was Witte-engineered with a natural gas heated air supply and cyclone exhaust.

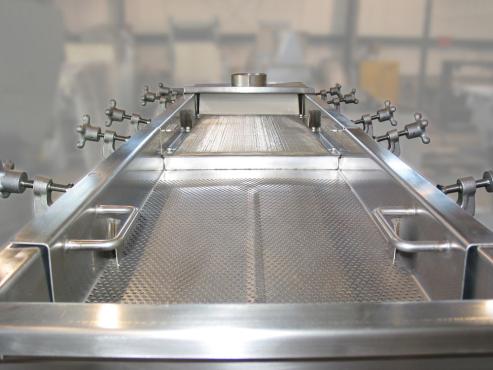

Vibrating screener design permits full internal access, fast disassembly for easy cleaning, changeover.

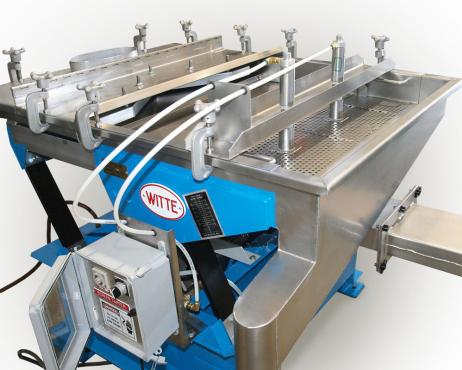

New Auto-Tapper Automatically Frees Lodged Pellets From Classifier.

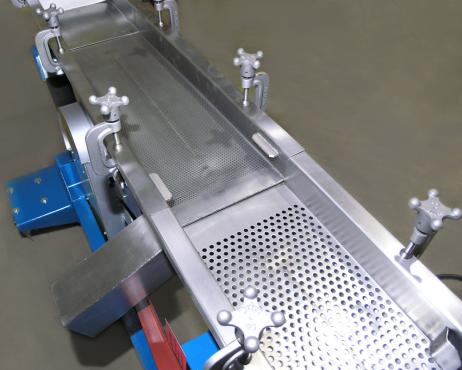

Plastic pellet classifiers feature innovative perforated deck to remove “fines,” prevent blockages, promote line uptime.

Witte is always willing to work with our customers to come up with design modifications to meet special requests.

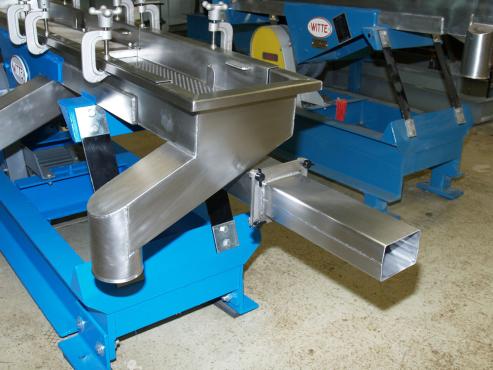

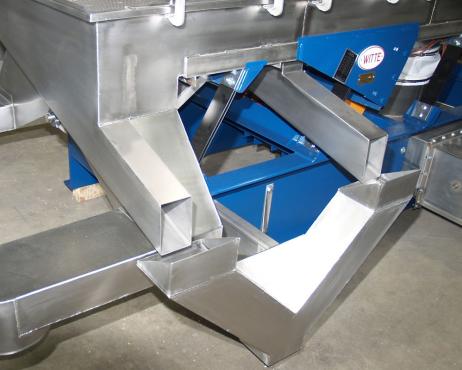

Quick-disconnect classifier discharge invites easy cleaning.

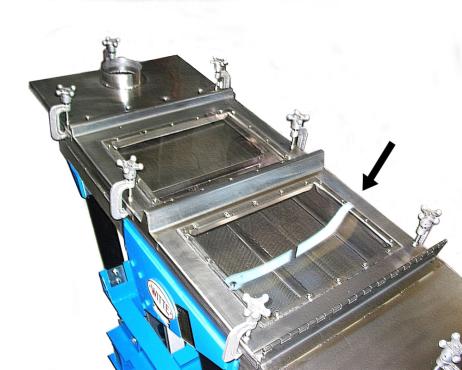

Clear screen covers provide constant view of product in process to detect blockages without removing cover or halting operation.

Shown is another example of a Fluid Bed Dryer with integral bag collector for mineral product.

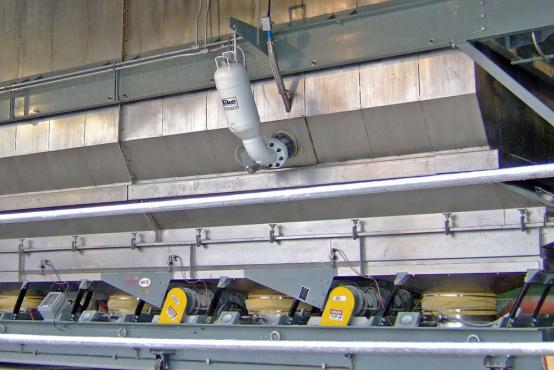

Fluid bed dryers, coolers with automated explosion suppression systems.

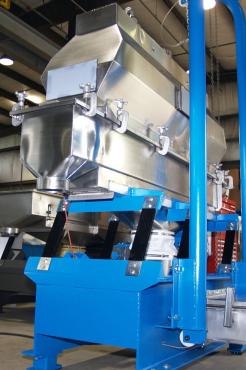

New dust recovery hood captures airborne particles and returns to process for recycling as finished product.

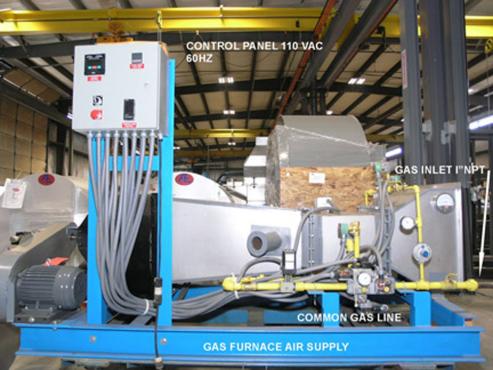

Witte dryers offered with gas furnace, shown with air supply and control panel

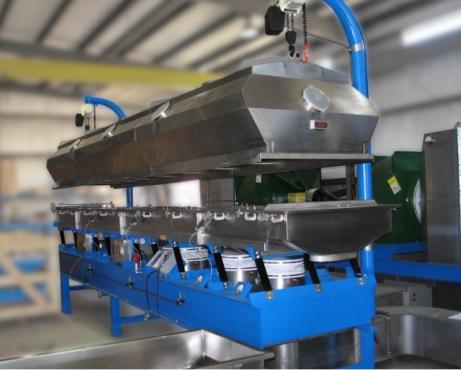

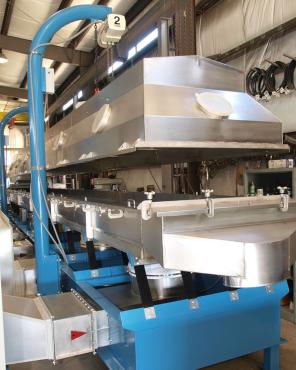

Motorized hoist system automatically raises fluid bed dryer cover for safe, fast, easy access and cleaning.

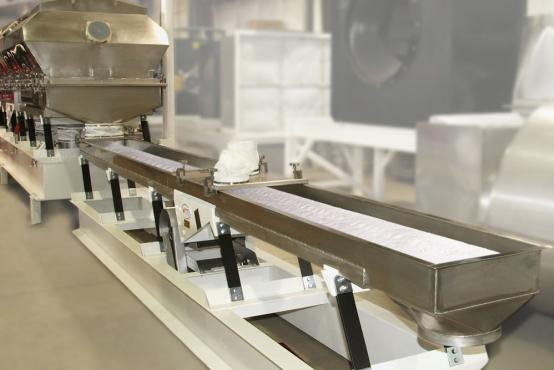

Sanitary vibratory conveyors protect sensitive products from contamination and safeguard particle integrity.

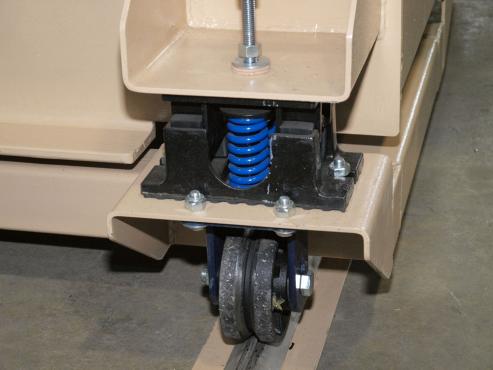

Process equipment manufacturer offers vibration isolators to permit installation on mezzanines, upper floors.

For products of very fine particle size, we offer our Fluid Bed Dryers and Coolers with an integral bag collector (directly over top) to keep all the product contained within.

Fluid Bed Dryer Design Allows Complete Cleaning To Prevent Cross-Contamination, Minimize Risk Of Allergen Transfer And Speed Changeover.

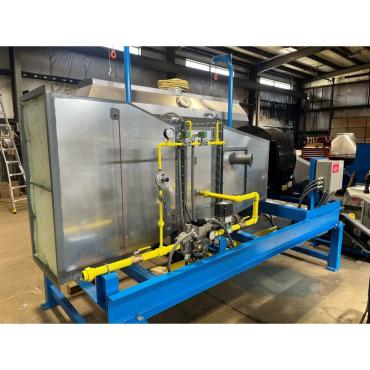

Witte custom manufactures gas furnaces with air supply and controls for each system.
